Product Introduction

Product Descriptions

Connectors

Connectors

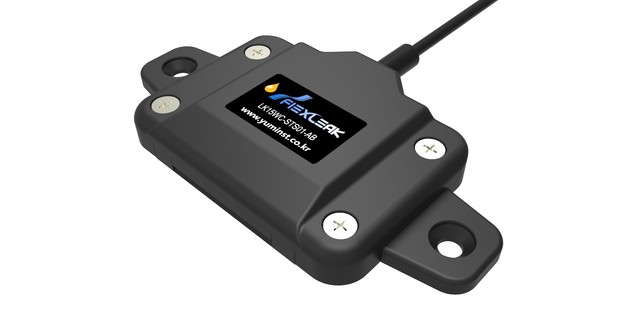

Waterproof start connector

(LK15WC-STS01)

Fixed Type
Fixed Type

- Product Information

  • Easy assembly structure using bolts
  • Simple operation by connecting to the beginning of film sensor
  • Impact resistance and chemical resistance
  • Sensor installation directly on surface and IP67 rating (double waterproof structure)
  • Terminal connector for water leak distance detection sensor
  • Fixed installation possible
Classification
Specification
Product Name
Waterproof start connector
Model Name
LK15WC-STS01
Material
PBT
Dimensions
61mm(W) X 47mm(H) X 10mm(D)
Color
BLACK
Usage Environment
Indoor, outdoor, non-explosion proof / explosion proof area
Chemical Resistance
Acidic and alkaline resistance properties
Heat Distortion Temperature
90℃ ~ 120℃
Waterproof Rating
IP67
Remarks
The lead cable connected to the connector can be up to 50 meters

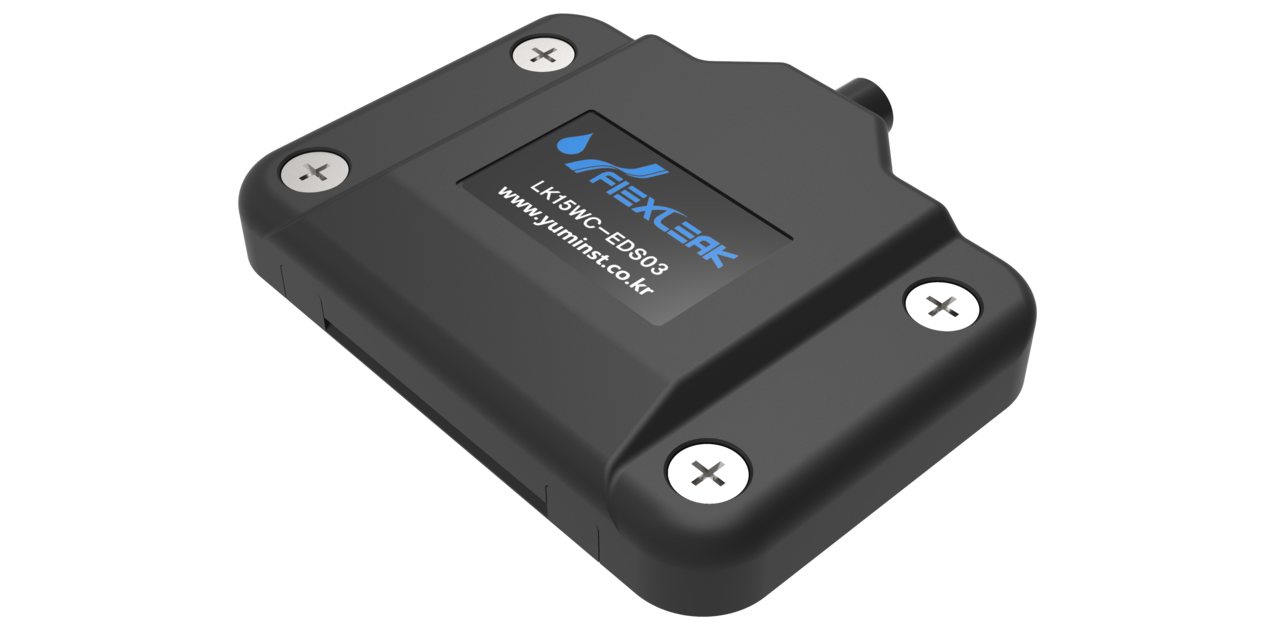

Waterproof water leak detection end connector

(LK15WC-EDS03)

Fixed Type
Fixed Type

- Product Information

  • Easy assembly structure using bolts
  • Simple operation by connecting to the end of film sensor
  • Impact resistance and chemical resistance
  • Sensor installation directly on surface and IP67 rating (double waterproof structure)
  • Terminal connector for water leak detection sensors
  • Fixed installation possible
Classification
Specification
Product Name
Waterproof water leak  detection end connector
(Use only)
Model Name
LK15WC-EDS03
Material
PBT
Dimensions
61mm(W) X 47mm(H) X 10mm(D)
Color
BLACK
Usage Environment
Indoor, outdoor, non-explosion proof / explosion proof area
Chemical Resistance
Acidic and alkaline resistance properties
Heat Distortion Temperature
90℃ ~ 120℃
Waterproof Rating
IP67
Remarks
Fixed type support

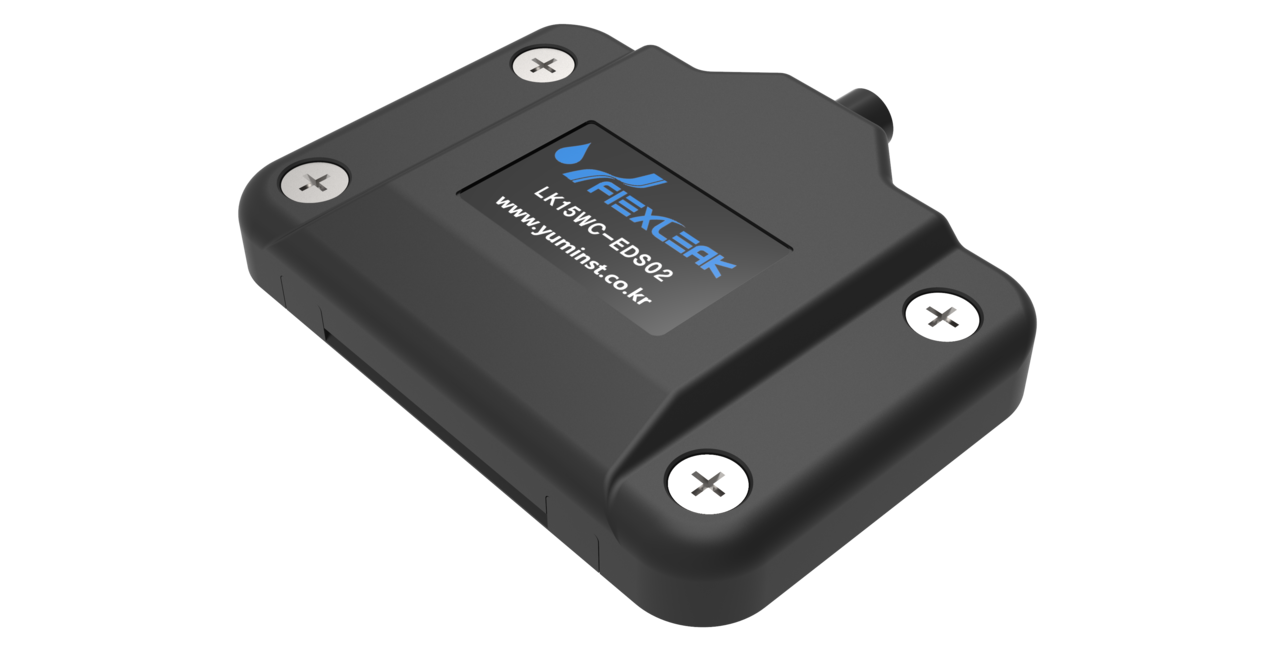

Waterproof water leak distance detection end connector

(LK15WC-EDS02)

Fixed Type
Fixed Type

- Product Information

  • Easy assembly structure using bolts
  • Simple operation by connecting to the end of film sensor
  • Impact resistance and chemical resistance
  • Sensor installation directly on surface and IP67 rating (double waterproof structure)
  • Terminal connector for water leak distance detection sensors
  • Fixed installation possible
Classification
Specification
Product Name
Waterproof water leak distance detection end connector (Use only)
Model Name
LK15WC-EDS02
Material
PBT
Dimensions
61mm(W) X 47mm(H) X 10mm(D)
Color
BLACK
Usage Environment
Indoor, outdoor, non-explosion proof / explosion proof area
Chemical Resistance
Acidic and alkaline resistance properties
Heat Distortion Temperature
90℃ ~ 120℃
Waterproof Rating
IP67
Remarks
Fixed type support

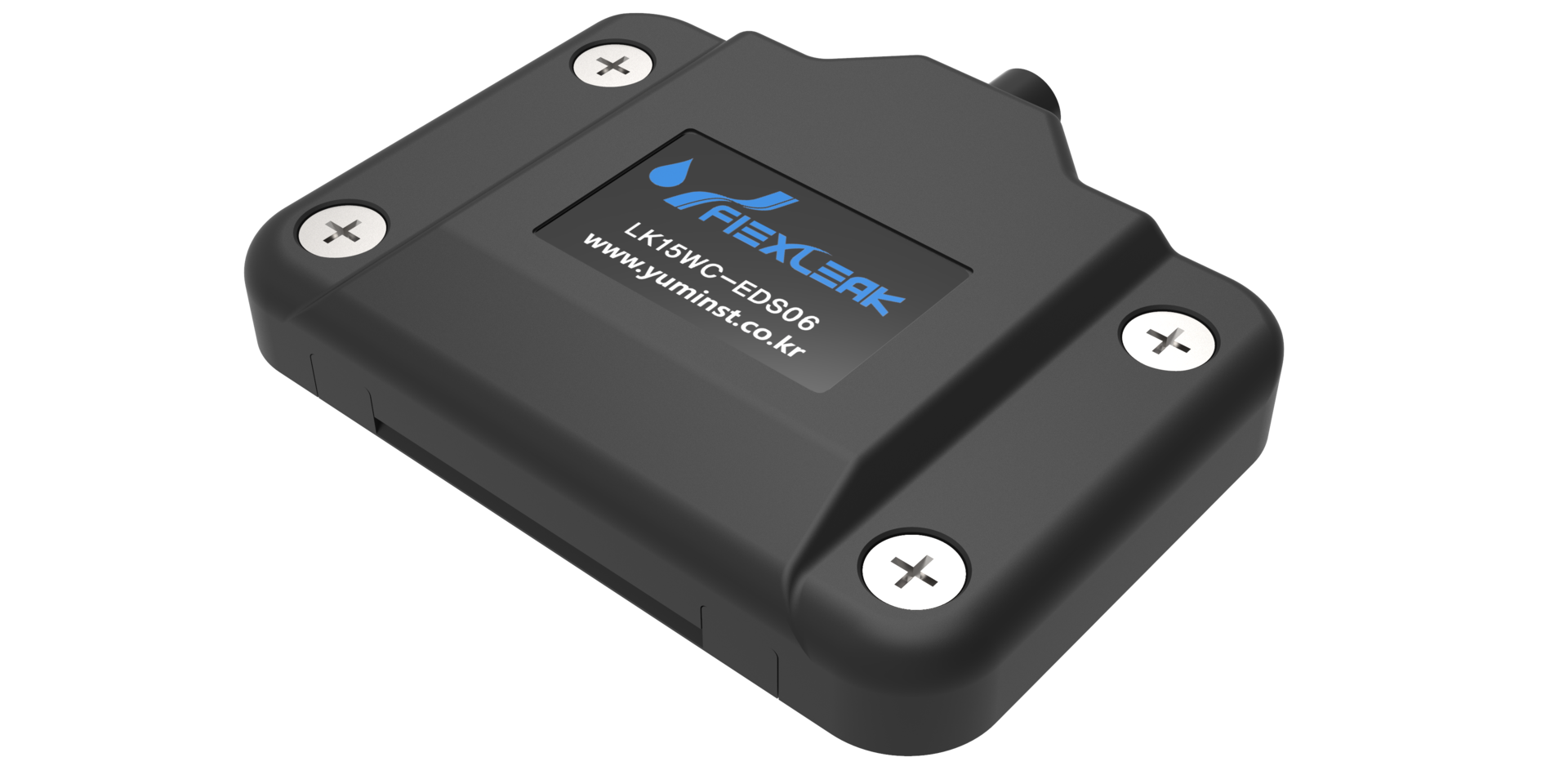

Waterproof chemical solution detection end connector

(LK15WC-EDS06)

- Product Information

  • Easy assembly structure using bolts
  • Simple operation by connecting to the end of film sensor
  • Impact resistance and chemical resistance
  • Sensor installation directly on surface and IP67 rating (double waterproof structure)
  • Terminal connector for chemical detection sensors
  • Fixed installation possible
Classification
Specification
Product Name
Waterproof chemical solution detection end connector (Use only)
Model Name
LK15WC-EDS06
Material
PBT
Dimensions
61mm(W) X 47mm(H) X 10mm(D)
Color
BLACK
Usage Environment
Indoor, outdoor, non-explosion proof / explosion proof area
Chemical Resistance
Acidic and alkaline resistance properties
Heat Distortion Temperature
90℃ ~ 120℃
Waterproof Rating
IP67
Remarks
Fixed type support

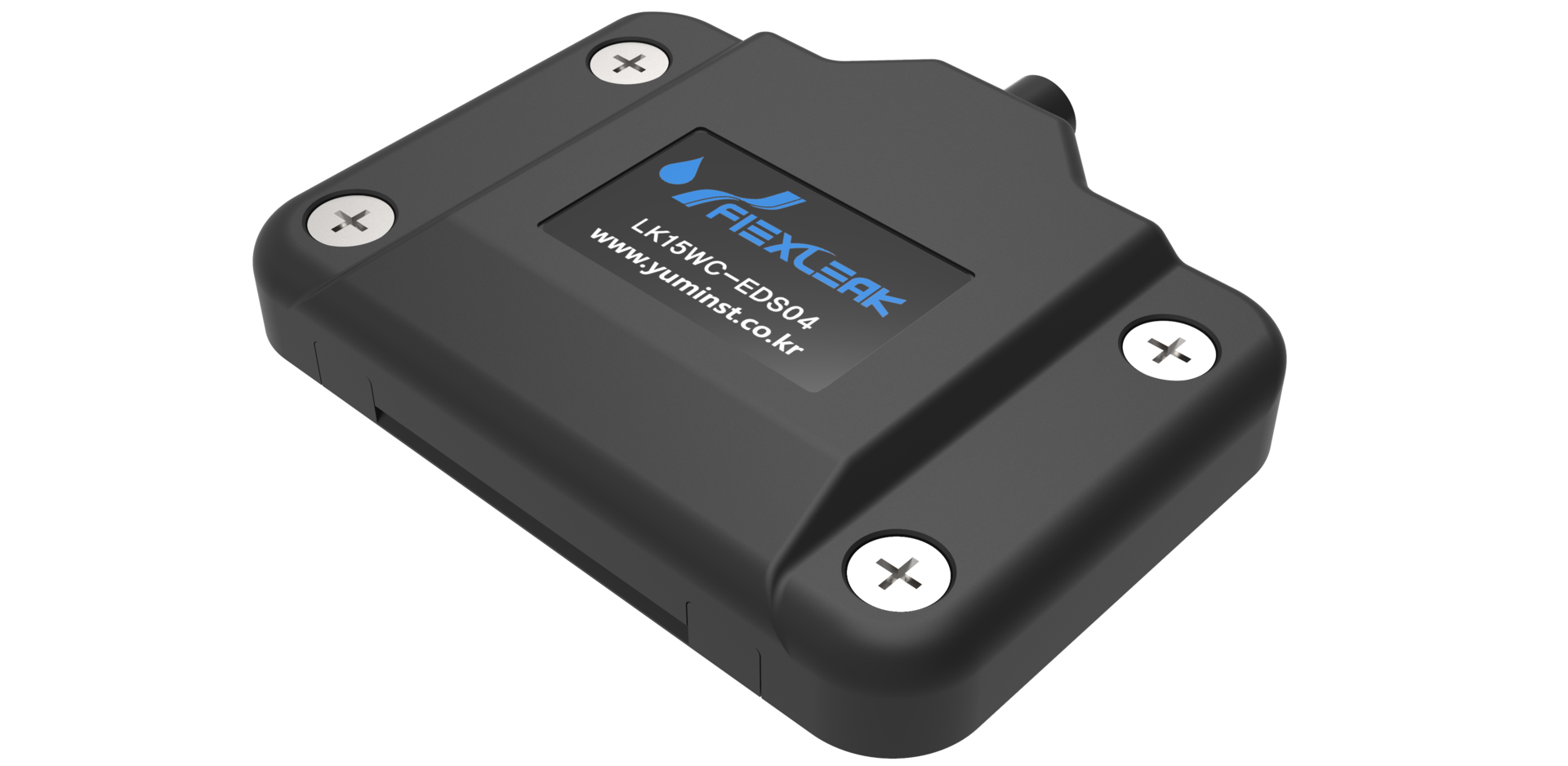

Waterproof oil and organic solvent solution detection end connector

(LK15WC-EDS04)

- Product Information

  • Easy assembly structure using bolts
  • Simple operation by connecting to the end of film sensor
  • Impact resistance and chemical resistance
  • Sensor installation directly on surface and IP67 rating (double waterproof structure)
  • Terminal connector for oil and organic solvent detection sensors
  • Fixed installation possible
Classification
Specification
Product Name
Waterproof oil and organic solvent solution detection end connector (Use only)
Model Name
LK15WC-EDS04
Material
PBT
Dimensions
61mm(W) X 47mm(H) X 10mm(D)
Color
BLACK
Usage Environment
Indoor, outdoor, non-explosion proof / explosion proof area
Chemical Resistance
Acidic and alkaline resistance properties
Heat Distortion Temperature
90℃ ~ 120℃
Waterproof Rating
IP67
Remarks
Fixed type support

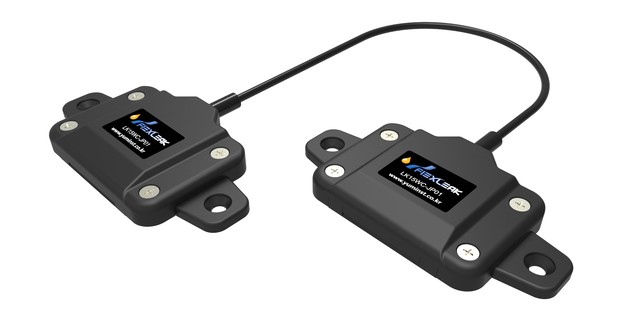

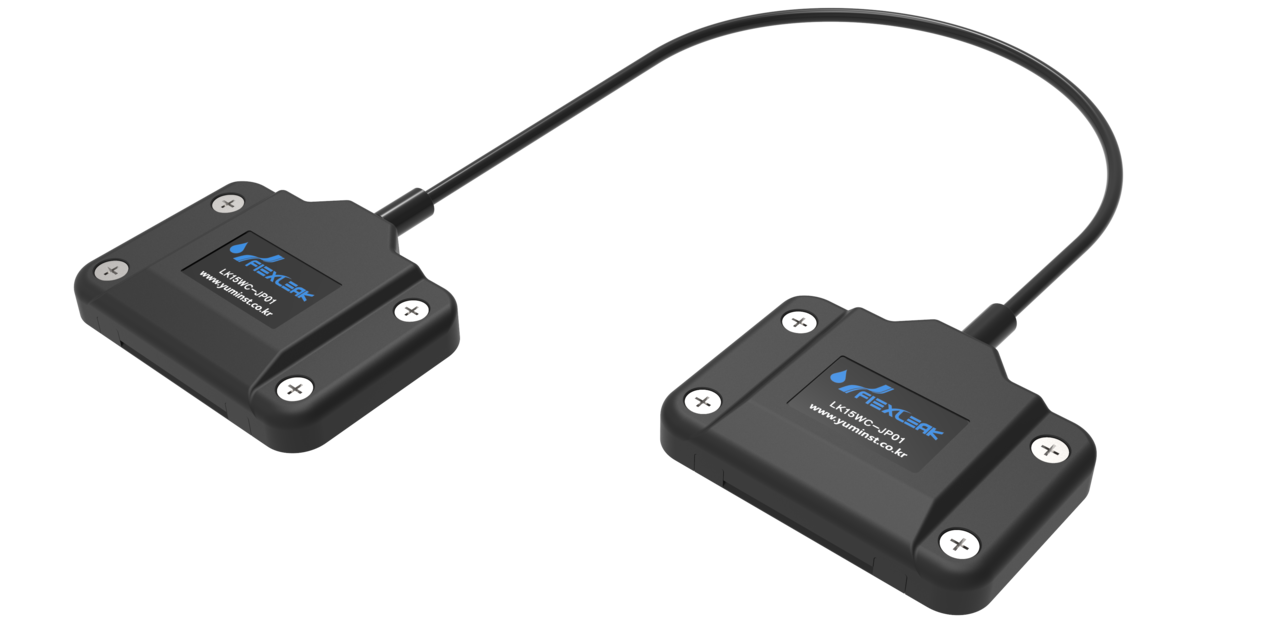

Waterproof jump connector

(LK15WC-JP01)

Fixed Type
Fixed Type

- Product Information

  • Easy assembly structure using bolts
  • Used when connecting sensors at various angles
  • Use to replace damaged sensors (minimal cutting of sensor)
  • Impact resistance and chemical resistance
  • Sensor installation directly on surface and IP67 rating (double waterproof structure)
Classification
Specification
Product Name
Waterproof jump connector
Model Name
LK15WC-JP01
Material
PBT
Dimensions
61mm(W) X 47mm(H) X 10mm(D)
Color
BLACK
Usage Environment
Indoor, outdoor, non-explosion proof / explosion proof area
Chemical Resistance
Acidic and alkaline resistance properties
Heat Distortion Temperature
90℃ ~ 120℃
Waterproof Rating
IP67
Remarks
The lead cable between the connectors can be up to 10 meters

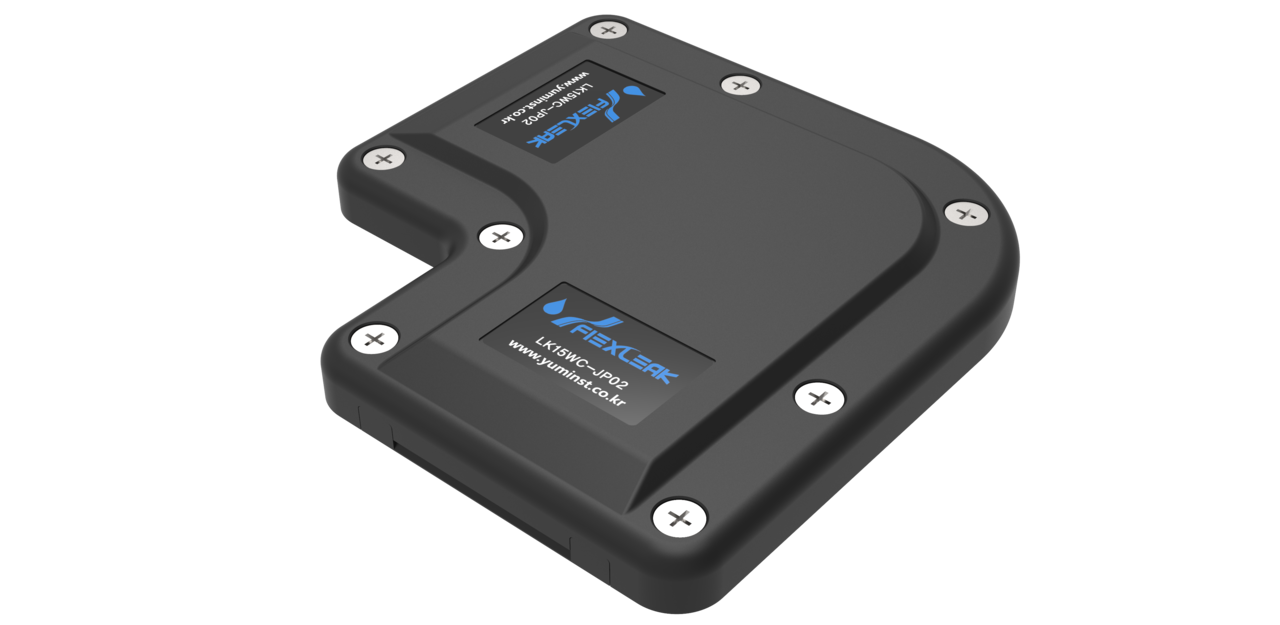

Waterproof corner connector

(LK15WC-JP02)

Fixed Type
Fixed Type

- Product Information

  • Easy assembly structure using bolts
  • Used to accommodate 90 ° angle when installing sensor
  • Impact resistance and chemical resistance
  • Sensor installation directly on surface and IP67 rating (double waterproof structure)
  • Fixed construction possible
Classification
Specification
Product Name
Waterproof corner connector
Model Name
LK15WC-JP02
Material
PBT
Dimensions
90mm(W) X 90mm(H) X 10mm(D)
Color
BLACK
Usage Environment
Indoor, outdoor, non-explosion proof / explosion proof area
Chemical Resistance
Acidic and alkaline resistance properties
Heat Distortion Temperature
90℃ ~ 120℃
Waterproof Rating
IP67
Remarks
Fixed type support

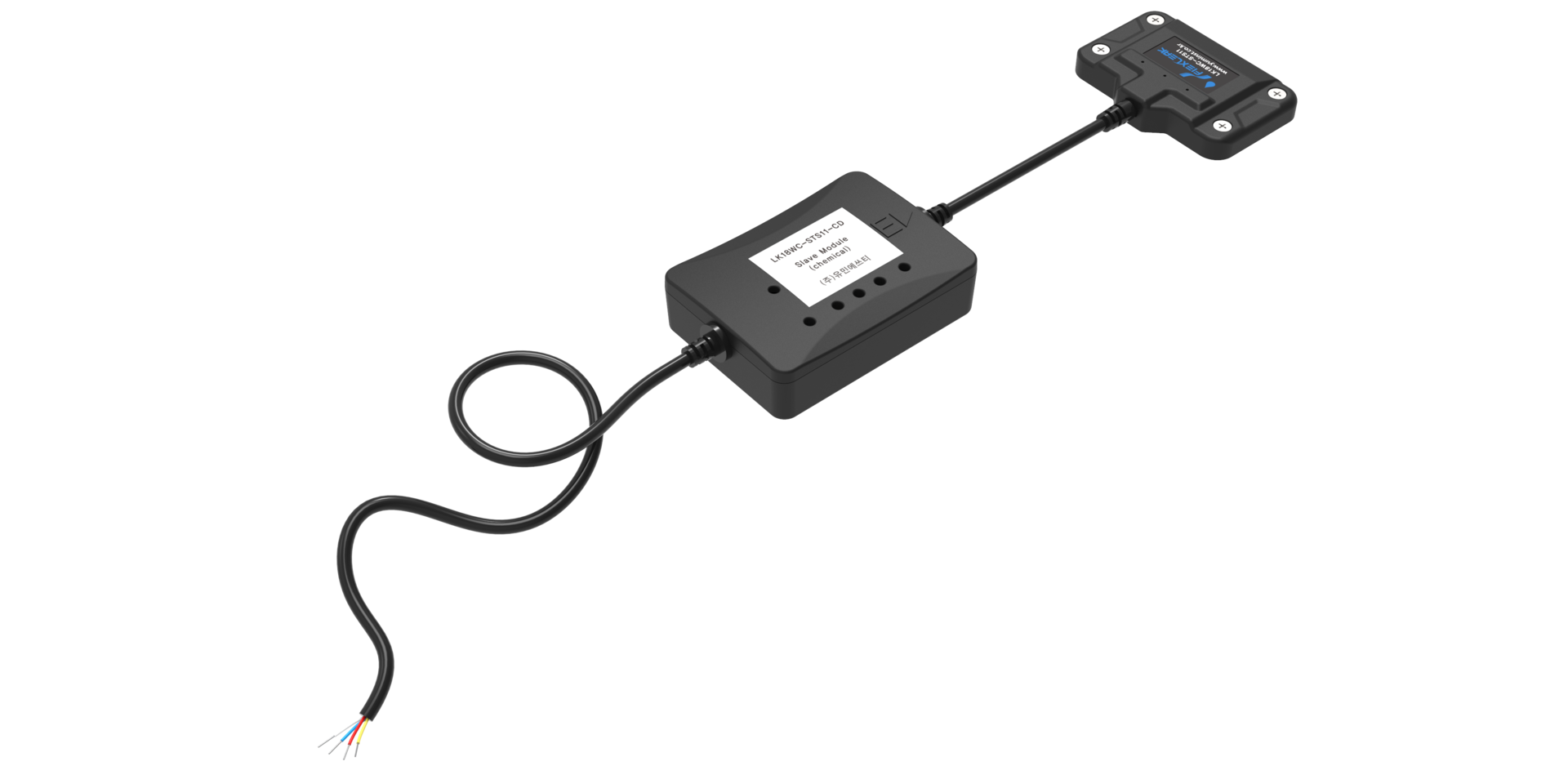

Multi-leak chemical solution detection start connector

(LK18WC-STS11-CD)

- Product Information

  • Easy assembly structure using bolts
  • For use at the beginning of the sensor film for multi-leak chemical solutions
  • Impact resistance and chemical resistance
  • Sensor installation directly on surface and IP67 rating (double waterproof structure)
  • Includes 1-channel chemical solution detection slave module
  • Detecting chemical solution and temperatures
Classification
Specification
Product Name
Multi-leak chemical solution detection start connector
Model Name
LK18WC-STS11-CD
Material
PBT + G/F 30%
Dimensions
Slave module
77mm(W) X 56.2mm(H) X 21.4mm(D)
Connector
66mm(W) X 41.5mm(H) X 11.5mm(D)
Color
BLACK
Usage Environment
Indoor, outdoor, non-explosion proof / explosion proof area
Chemical Resistance
Acidic and alkaline resistance properties
Heat Distortion Temperature
90℃ ~ 120℃
Certification
KCS, KC, IECEx, ATEX, UL, CE
Applicable Sensor
LK18-T3-3001
Input Voltage
DC24V
Power Consumption
1W

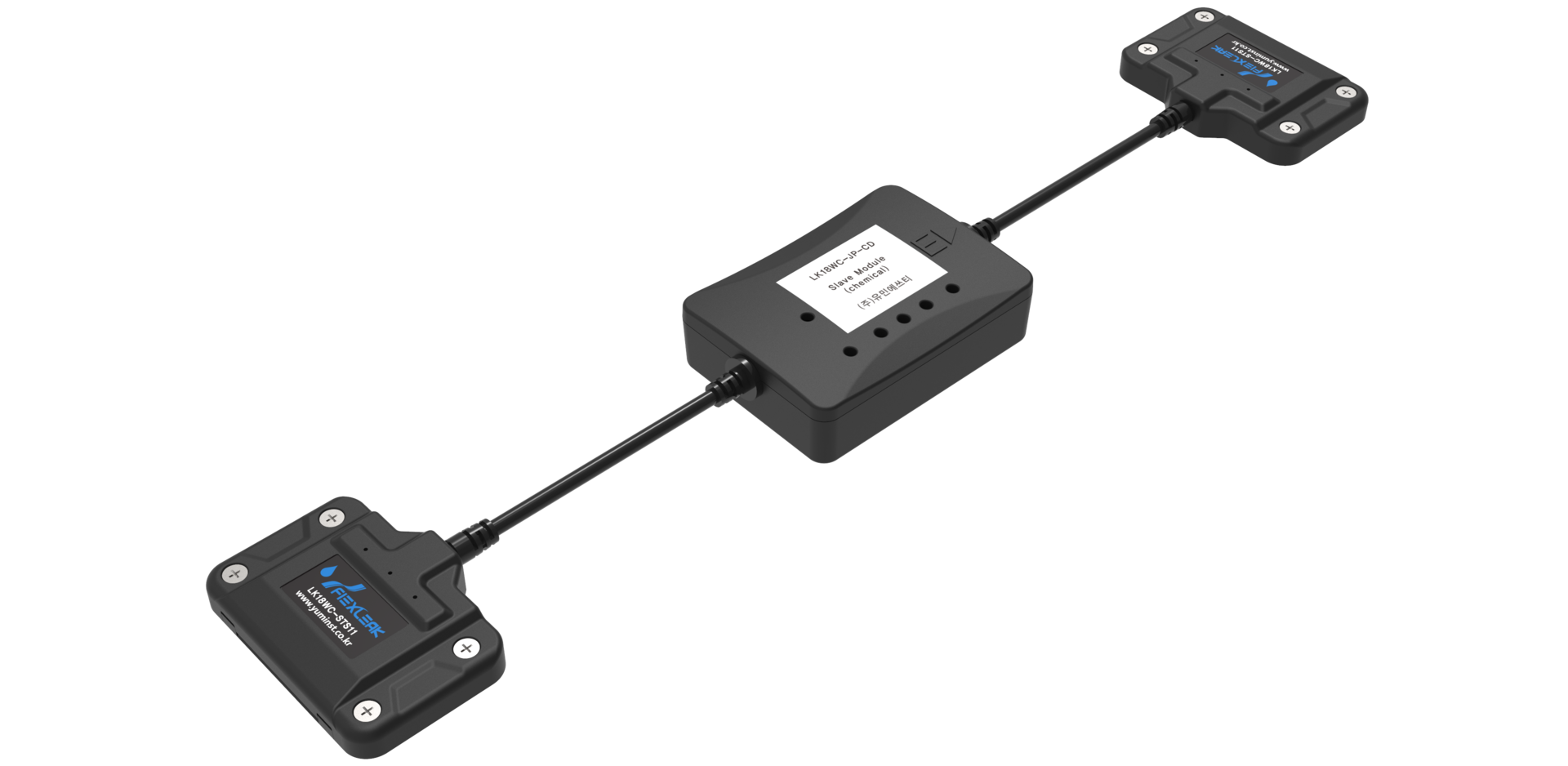

Multi-leak chemical solution detection jump connector

(LK18WC-JP-CD)

- Product Information

  • Easy assembly structure using bolts
  • Use of expandable channel connection for sensors dedicated to multi-leak chemical solutions (Max 14EA)
  • Impact resistance and chemical resistance
  • Sensor installation directly on surface and IP67 rating (double waterproof structure)
  • Includes 1-channel chemical solution detection slave module
  • Detecting chemical solution and temperature
Classification
Specification
Product Name
Multi-leak chemical solution detection jump connector
Model Name
LK18WC-JP-CD
Material
PBT + G/F 30%
Dimensions
Slave module
77mm(W) X 56.2mm(H) X 21.4mm(D)
Connector
66mm(W) X 41.5mm(H) X 11.5mm(D)
Color
BLACK
Usage Environment
Indoor, outdoor, non-explosion proof / explosion proof area
Chemical Resistance
Acidic and alkaline resistance properties
Heat Distortion Temperature
90℃ ~ 120℃
Certification
KCS, KC, IECEx, ATEX, UL, CE
Applicable Sensor
LK18-T3-3001
Input Voltage
DC24V
Power Consumption
1W

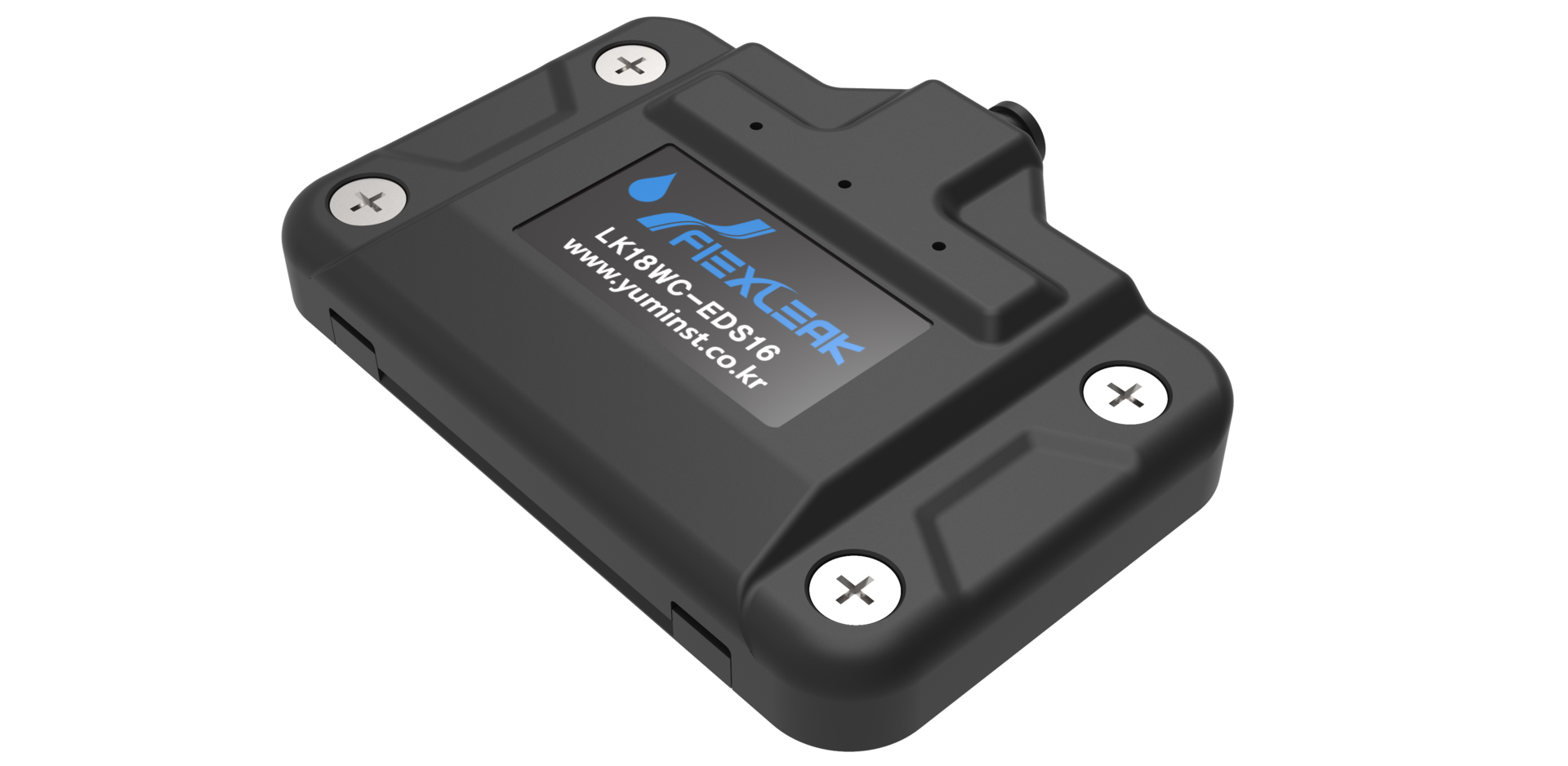

Multi-leak chemical solution detection end connector

(LK18WC-EDS16)

- Product Information

  • Easy assembly structure using bolts
  • For use at the end of a multi-leak chemical solution sensor
  • Impact resistance and chemical resistance
  • Sensor installation directly on surface and IP67 rating (double waterproof structure)
Classification
Specification
Product Name
Multi-leak chemical solution detection end connector
Model Name
LK18WC-EDS16
Material
PBT + G/F 30%
Dimensions
66mm(W) X 41.5mm (H) X 11.5mm (D)
Color
BLACK
Usage Environment
Indoor, outdoor, non-explosion proof / explosion proof area
Chemical Resistance
Acidic and alkaline resistance properties
Heat Distortion Temperature
90℃ ~ 120℃
Certification
KCS, KC, IECEx, ATEX, UL, CE
Applicable Sensor
LK18-T3-3001

Multi-leak oil and organic solvent solution detection start connector

(LK18WC-STS11-OWD)

- Product Information

  • Easy assembly structure using bolts
  • For use with multi-leak oil and organic solvent solutions by connecting to the beginning of the sensor film
  • Impact resistance and chemical resistance
  • Sensor installation directly on surface and IP67 rating (double waterproof structure)
  • Includes 1-channel oil and organic solvent solution detection slave module
  • Detecting oil and organic solvent solution and temperature
Classification
Specification
Product Name
Multi-leak oil and organic solvent solution detection start connector
Model Name
LK18WC-STS11-OWD
Material
PBT + G/F 30%
Dimensions
Slave module
77mm(W) X 56.2mm(H) X 21.4mm(D)
Connector
66mm(W) X 41.5mm(H) X 11.5mm(D)
Color
BLACK
Usage Environment
Indoor, outdoor, non-explosion proof / explosion proof area
Chemical Resistance
Acidic and alkaline resistance properties
Heat Distortion Temperature
90℃ ~ 120℃
Certification
KCS, KC, IECEx, ATEX, UL, CE
Applicable Sensor
LK18-T3-3001, LK18-T3-3002
Input Voltage
DC24V
Power Consumption
1W

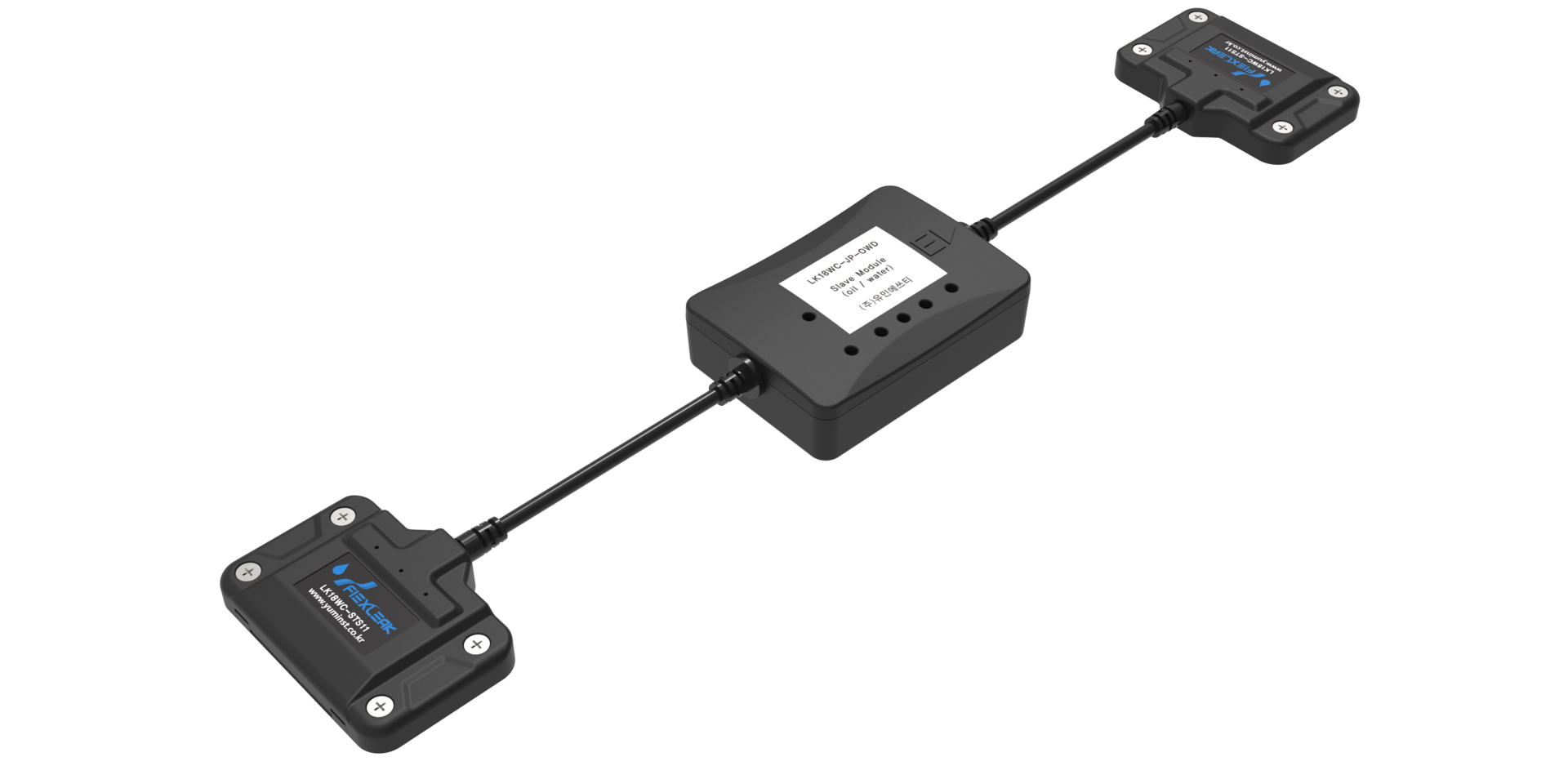

Multi-leak oil and organic solvent solution detection jump connector

(LK18WC-JP-OWD)

- Product Information

  • Easy assembly structure using bolts
  • Expandable channel connection for multi-leak oil and organic solvent detection sensors (Max 14EA)
  • Impact resistance and chemical resistance
  • Sensor installation directly on surface and IP67 rating (double waterproof structure)
  • Includes 1-channel oil and organic solvent solution detection slave module
  • Detecting oil and organic solvent solution and temperature
Classification
Specification
Product Name
Multi-leak oil and organic solvent solution detection jump connector
Model Name
LK18WC-JP-OWD
Material
PBT + G/F 30%
Dimensions
Slave module
77mm(W) X 56.2mm(H) X 21.4mm(D)
Connector
66mm(W) X 41.5mm(H) X 11.5mm(D)
Color
BLACK
Usage Environment
Indoor, outdoor, non-explosion proof / explosion proof area
Chemical Resistance
Acidic and alkaline resistance properties
Heat Distortion Temperature
90℃ ~ 120℃
Certification
KCS, KC, IECEx, ATEX, UL, CE
Applicable Sensor
LK18-T3-3001, LK18-T3-3002
Input Voltage
DC24V
Power Consumption
1W

Multi-leak oil and organic solvent solution detection end connector

(LK18WC-EDS13)

- Product Information

  • Easy assembly structure using bolts
  • For use with the end of a multi-leak oil and organic solvent solution sensor
  • Impact resistance and chemical resistance
  • Sensor installation directly on surface and IP67 rating (double waterproof structure)
Classification
Specification
Product Name
Multi-leak oil and organic solvent solution detection end connector
Model Name
LK18WC-EDS13
Material
PBT + G/F 30%
Dimensions
66mm(W) X 41.5mm (H) X 11.5mm (D)
Color
BLACK
Usage Environment
Indoor, outdoor, non-explosion proof / explosion proof area
Chemical Resistance
Acidic and alkaline resistance properties
Heat Distortion Temperature
90℃ ~ 120℃
Certification
KCS, KC, IECEx, ATEX, UL, CE
Applicable Sensor
LK18-T3-3001,LK18-T3-3002
Remarks
Also used for water detection (LK18-T3-3001)
in multi-leak applications

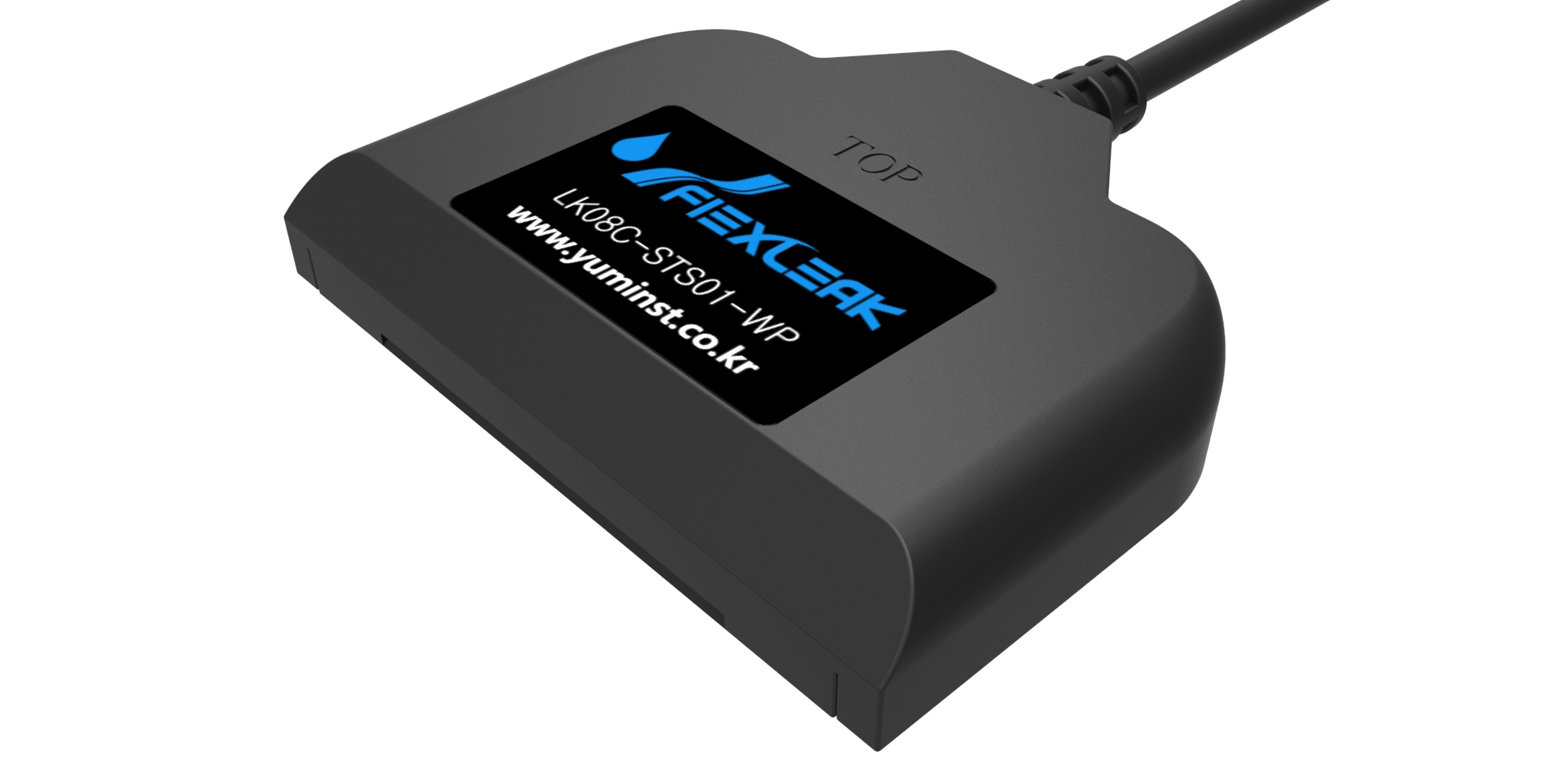

Basic start connector

(LK08-STS01-WP)

- Product Information

  • Easy assembly structure using bolts
  • Simple operation by connecting to the beginning of film sensor
  • Impact resistance and chemical resistance
  • Reliable connection and water-resistant type
Classification
Specification
Product Name
Basic start connector
Model Name
LK08C-STS01-WP
Material
PBT
Dimensions
47mm(W) X 37mm(H) X 8mm(D)
Color
BLACK
Usage Environment
Apply to indoor, non-explosive areas
Chemical Resistance
Acidic and alkaline resistance properties
Heat Distortion Temperature
90℃ ~ 120℃
Remarks
LK15WC-STS01 (Recommended for outdoor use)

Discontinued product (available until stock lasts)

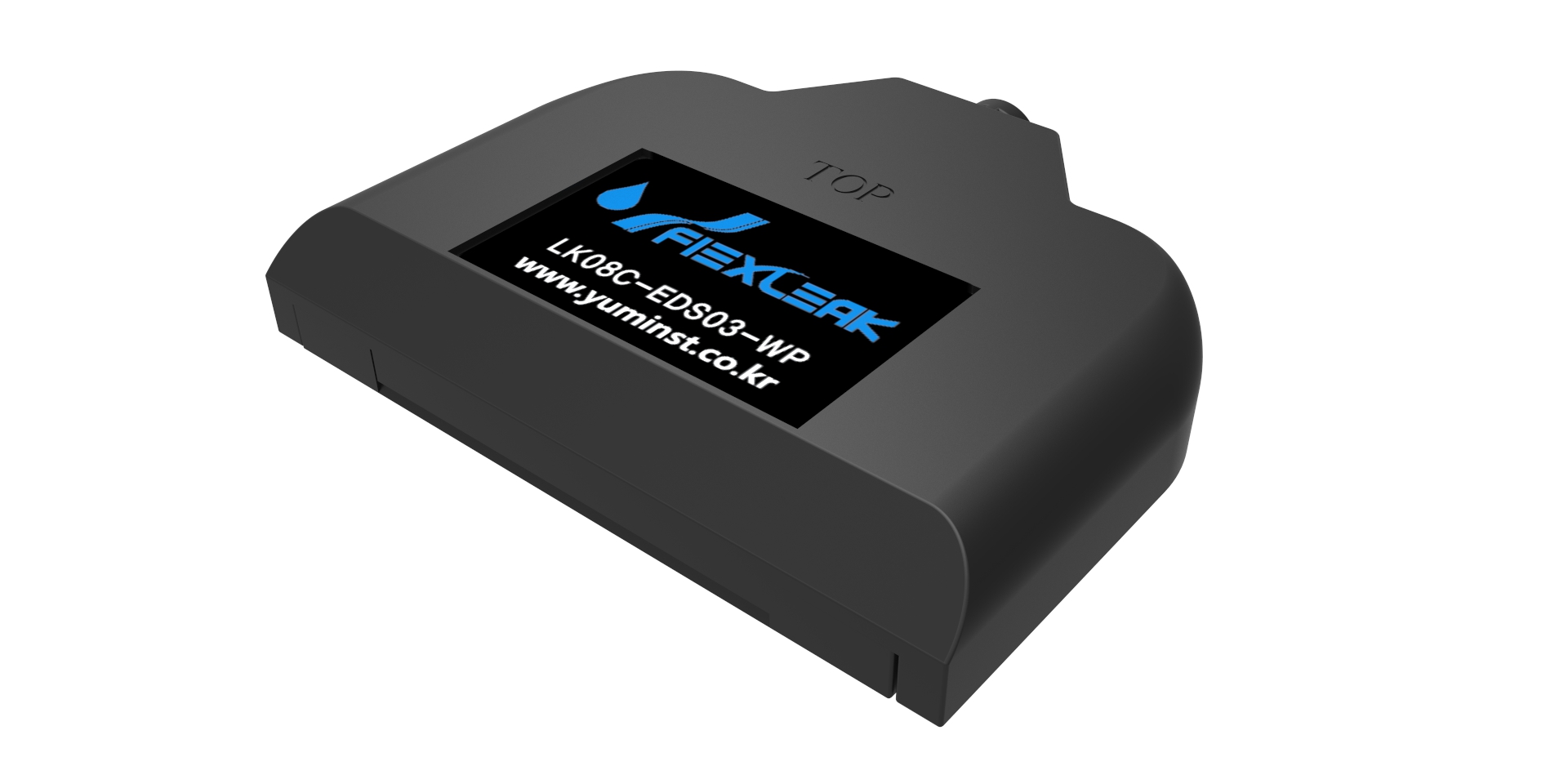

Basic end connector

(LK08-EDS03-WP)

- Product Information

  • Easy assembly structure using bolts
  • Simple operation by connecting to the end of film sensor
  • Impact resistance and chemical resistance
  • Reliable connection and water-resistant type
Classification
Specification
Product Name
Basic end connector
Model Name
LK08C-EDS03-WP
Material
PBT
Dimensions
47mm(W) X 37mm(H) X 8mm(D)
Color
BLACK
Usage Environment
Apply to indoor, non-explosive areas
Chemical Resistance
Acidic and alkaline resistance properties
Heat Distortion Temperature
90℃ ~ 120℃
Remarks
LK15WC-EDS03 (Recommended for outdoor use)

Discontinued product (available until stock lasts)

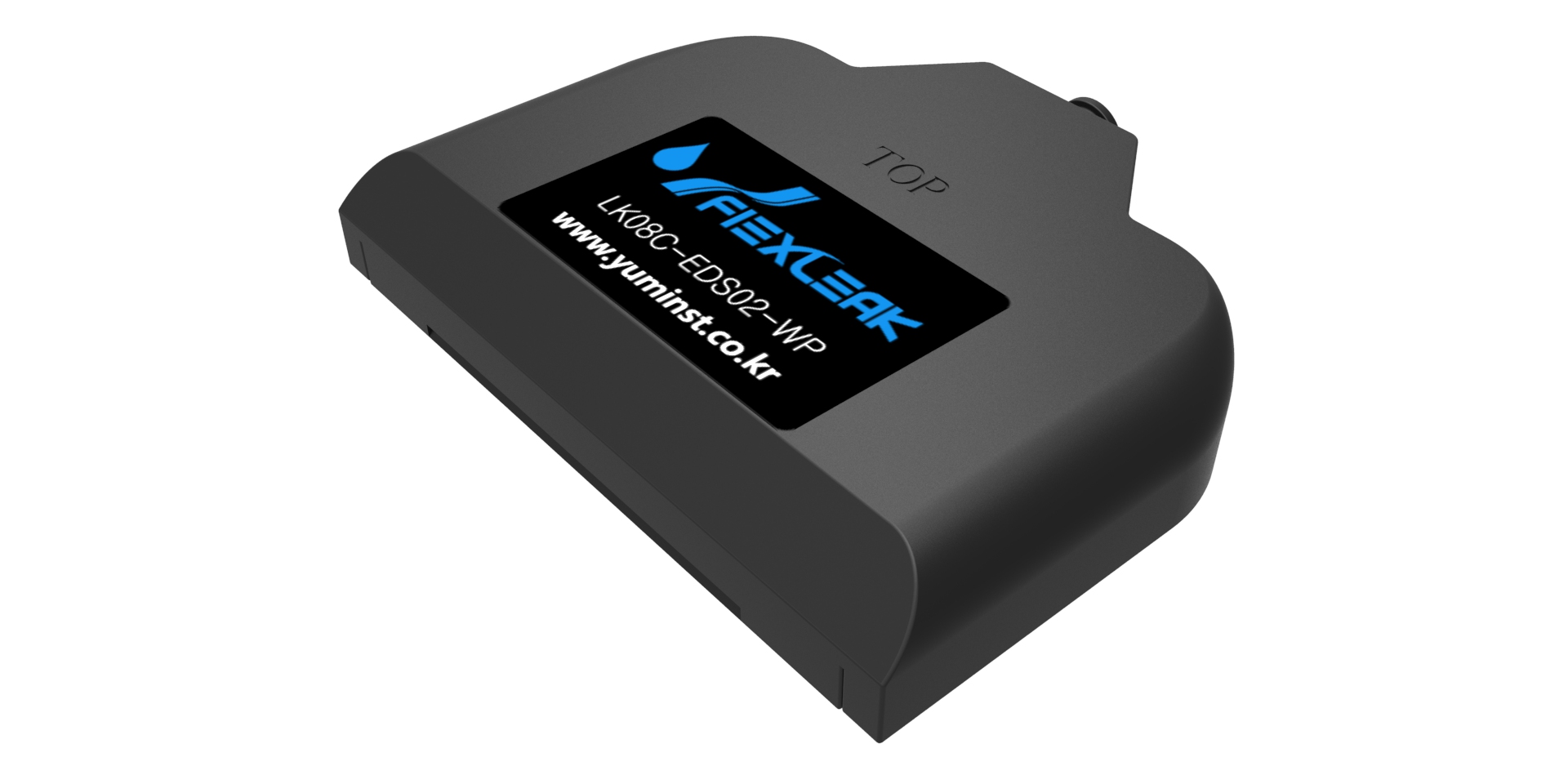

Basic distance end connector

(LK08-EDS02-WP)

- Product Information

  • Easy assembly structure using bolts
  • Simple operation by connecting to the end of film sensor
  • Impact resistance and chemical resistance
  • Reliable connection and water-resistant type
Classification
Specification
Product Name
Basic distance end connector
(Distance detection flexible sensor only)
Model Name
LK08C-EDS02-WP
Material
PBT
Dimensions
47mm(W) X 37mm(H) X 8mm(D)
Color
BLACK
Usage Environment
Apply to indoor, non-explosive areas
Chemical Resistance
Acidic and alkaline resistance properties
Heat Distortion Temperature
90℃ ~ 120℃
Remarks
LK15WC-EDS02 (Recommended for outdoor use)

Discontinued product (available until stock lasts)

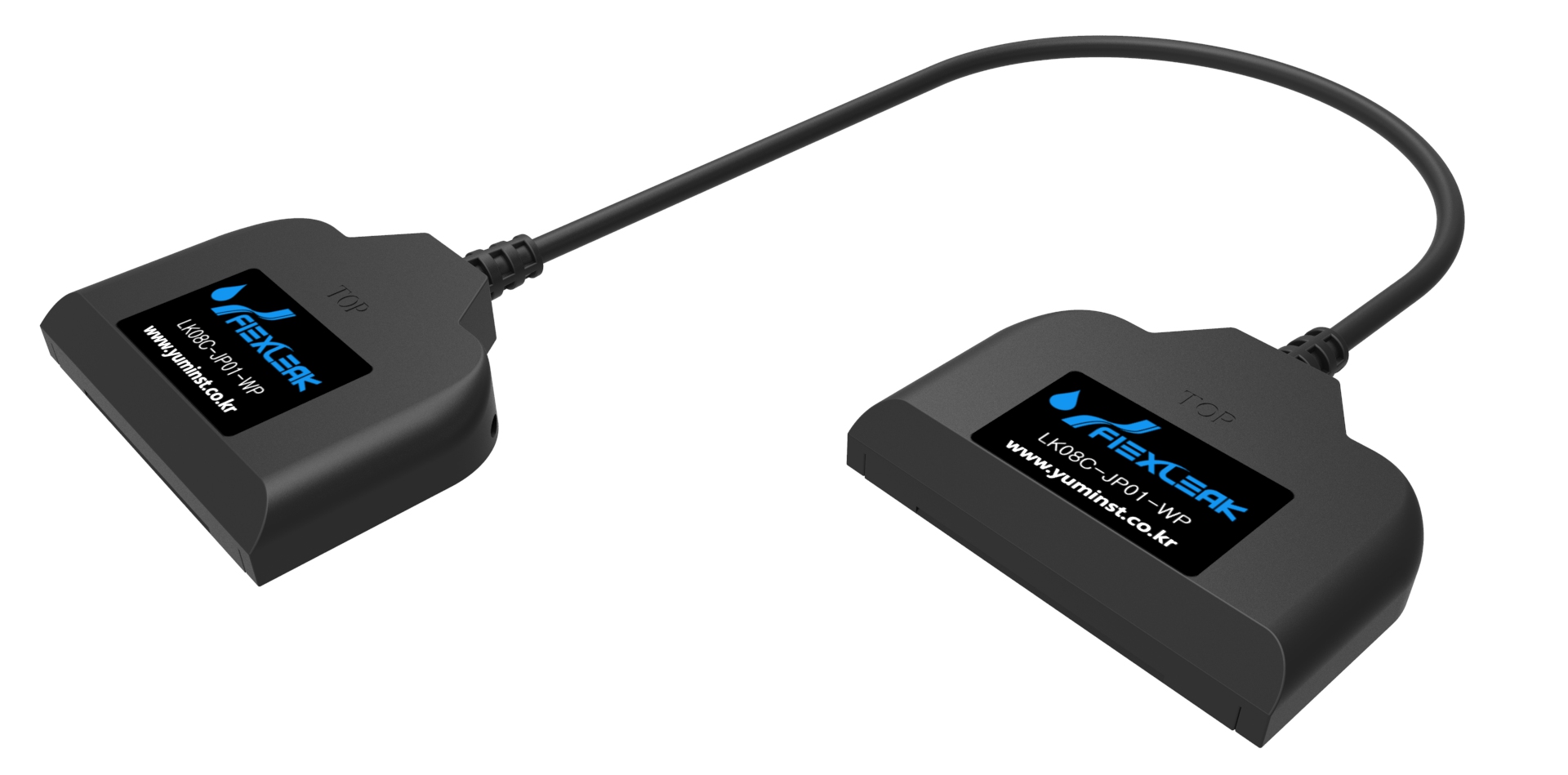

Basic jump connector

(LK08-JP01-WP)

- Product Information

  • Easy assembly structure using bolts
  • Use to replace damaged sensors (minimal cutting of sensor)
  • Assemble structural sensors at various angles
  • Impact resistance and chemical resistance
  • Reliable connection and water-resistant type
Classification
Specification
Product Name
Basic jump connector
Model Name
LK08C-JP01-WP
Material
PBT
Dimensions
47mm(W) X 37mm(H) X 8mm(D)
Color
BLACK
Usage Environment
Apply to indoor, non-explosive areas
Chemical Resistance
Acidic and alkaline resistance properties
Heat Distortion Temperature
90℃ ~ 120℃
Remarks
LK15WC-JP01 (Recommended for outdoor use)


Discontinued product (available until stock lasts)

Basic corner connector

(LK08-JP02-WP)

- Product Information

  • Easy assembly structure using bolts
  • Use to replace damaged sensors (minimal cutting of sensor)
  • Used to accommodate 90 ° angle when installing sensor
  • Impact resistance and chemical resistance
  • Reliable connection and water-resistant type
Classification
Specification
Product Name
Basic corner connector
Model Name
LK08C-JP02-WP
Material
PBT
Dimensions
79mm(W) X 79mm(H) X 9mm(D)
Color
BLACK
Usage Environment
Apply to indoor, non-explosive areas
Chemical Resistance
Acidic and alkaline resistance properties
Heat Distortion Temperature
90℃ ~ 120℃
Remarks
LK15WC-JP02 (Recommended for outdoor use)

Discontinued product (available until stock lasts)


Company Introdution

Product Descriptions

Solution

Customer Support
